MAXFLOW® SYSTEM
Increased water speed and drainage capacity with MAXFLOW®

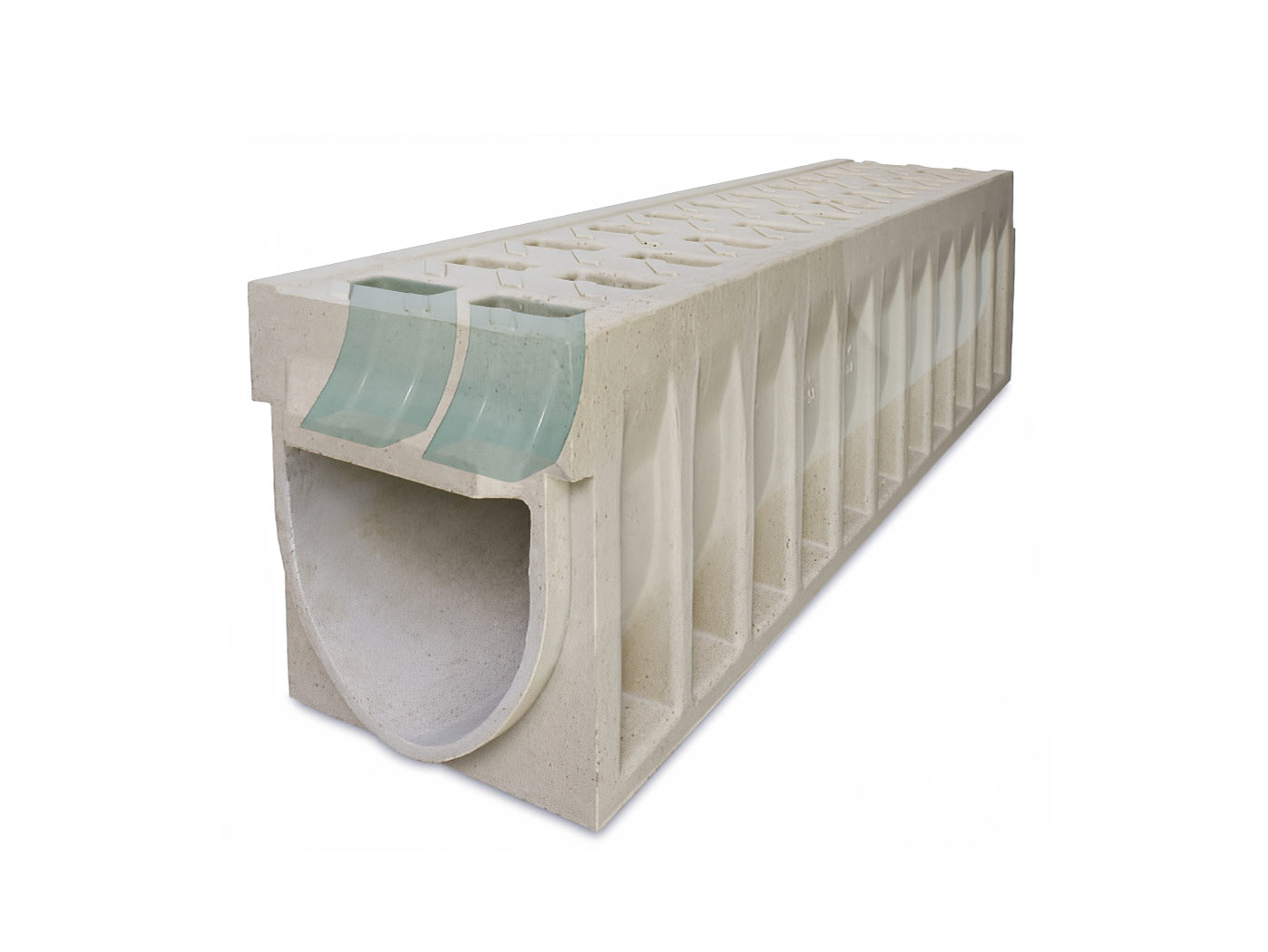

MAXFLOW® is an innovative hydraulic system built into the KOMPAQDRAIN® range that significantly increases drainage capacity without the need for a larger channel. Where conventional channels rely purely on gravity, MAXFLOW® actively accelerates water flow using the energy of the falling water itself.
Curved inlet design

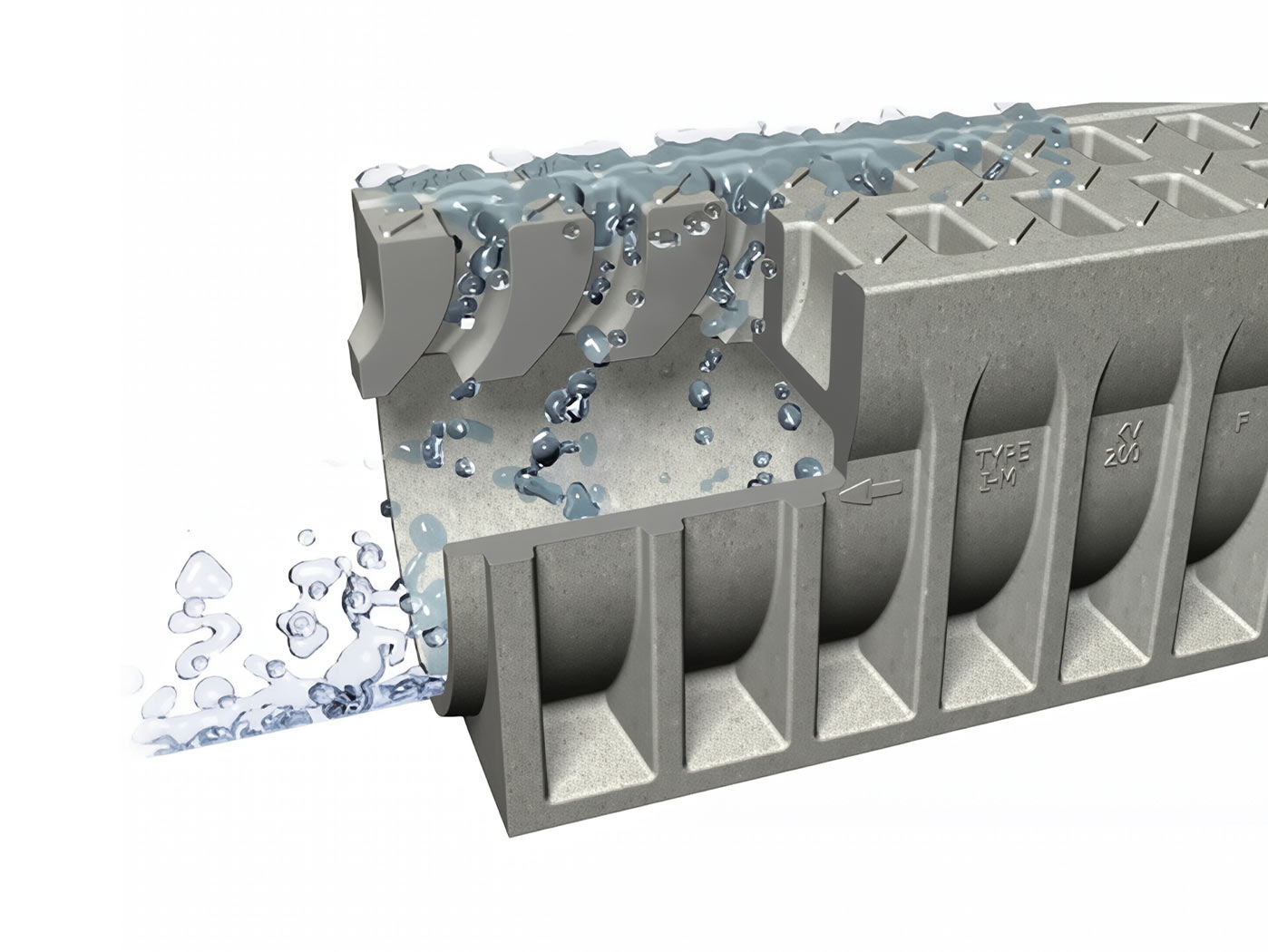

The inlets feature a specially engineered curved geometry that guides water into the channel in a controlled, efficient manner. This shape captures the kinetic energy of incoming water and converts it into forward flow speed, dramatically increasing throughput compared to standard straight-walled channels.
Water router
A built-in water router inside the channel body directs flow along the optimal path, preventing turbulence and energy loss. Together with the non-slip surface texture, it maintains consistent water speed throughout the entire length of the channel.

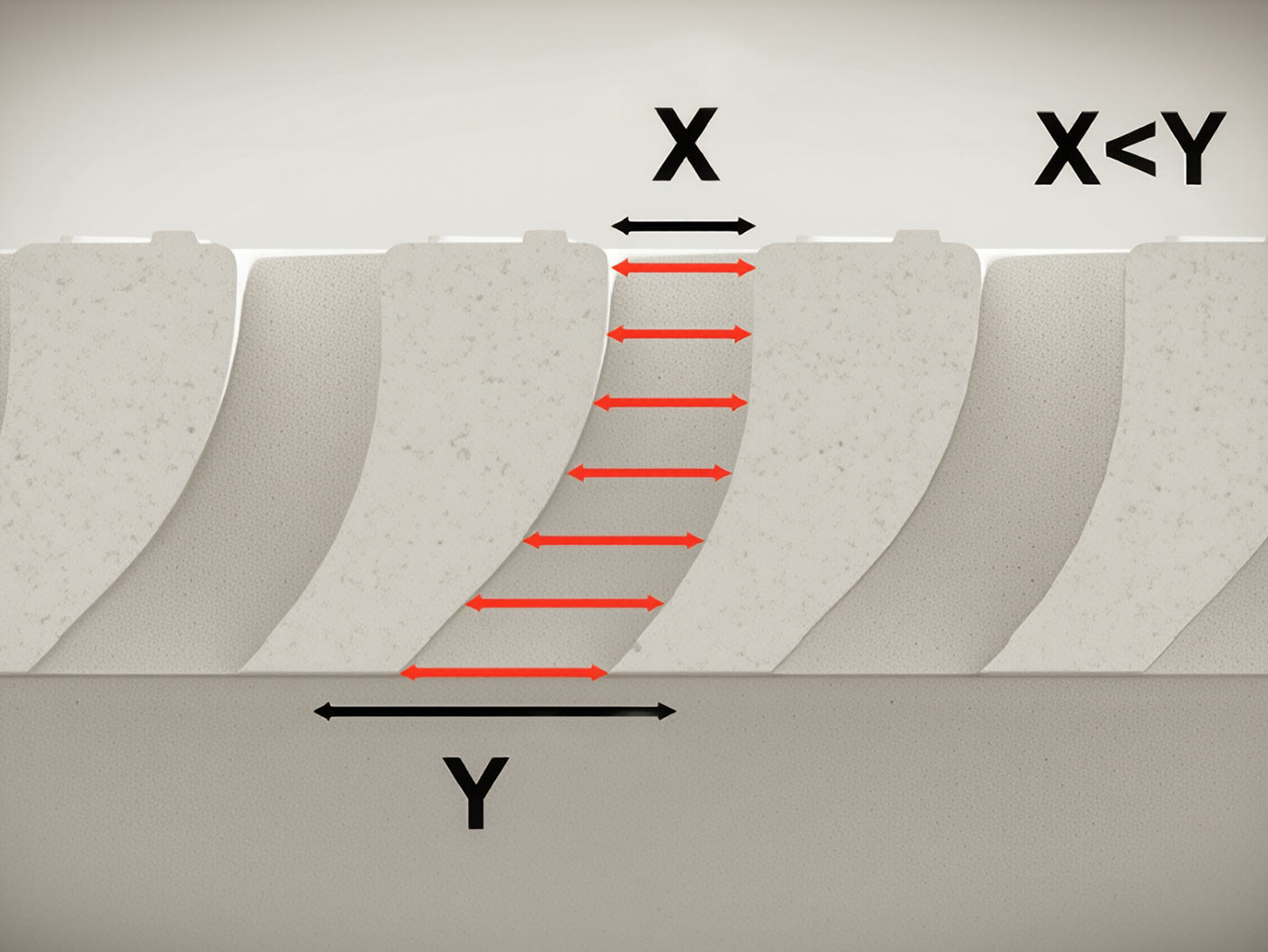

Progressive widening
The openings feature a progressive widening design that prevents debris, dust, and small particles from accumulating and causing blockages. The result is a channel that remains fully functional between maintenance intervals and delivers 100% drainage efficiency at all times.
MAXFLOW® allows KOMPAQDRAIN® to drain the same volume of water through a more compact channel — reducing installation costs, excavation depth and overall project footprint without compromising on performance.
